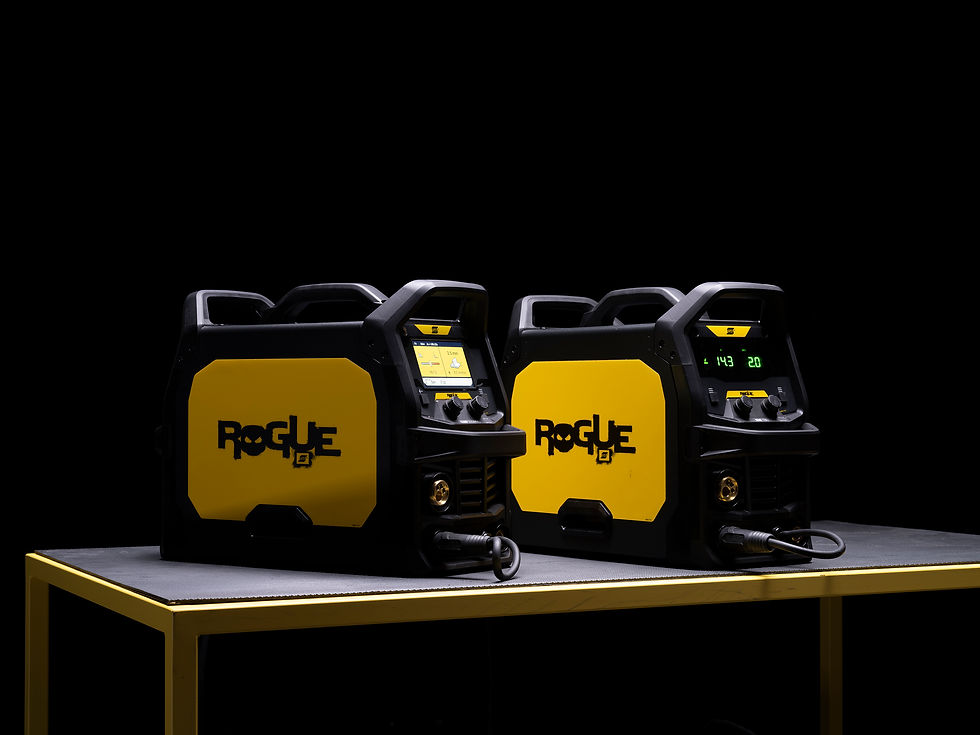

Esab Rogue EMP 210 PRO

Description
ESAB Rogue EMP 210 PRO is an inverter-based multi-process welding system designed to address all your welding project needs, from light fabrication to repair and maintenance. The system features industrial-grade arc performance and full featured controls that allow the welder to fine tune arc characteristics based on the material they are welding.

With a weight of only 16.7 kg, 230 V single-phase input and compatibility with 10 kVA generators, this system provides maximum flexibility and portability, both in the shop and in the field.

Entry-level welder with professional performance.
Rogue EM and EMP single-phase welding power sources take everything welders loved about Caddy Mig to the next level with proven Rogue performance and a rugged industrial design. Power Factor Control (PFC) technology allows for a highly efficient and steady arc that is resistant to power fluctuations. Break away from convention with Rogue.

Built to withstand impact after impact.
No other machine at this price point comes close to matching Rogue’s strength. Its robust and rigid fibreglass-moulded housing is built to withstand impact after impact, in the shop or in the field. Like every ESAB machine, Rogue comes with our industry-leading, 3-year warranty for unbeatable peace of mind. Goodbye cheaply constructed welders, hello strength and toughness when you go Rogue.

A portable workhorse.
Rogue’s compact and lightweight design makes it easy to carry from job to job, with sturdy handles and a small footprint. Thanks to stable arc performance, performs in the workshop or on-site, on both mains and generator power, all without affecting weld quality. With its durable and weather-resistant housing and IP23S rating, Rogue is the definition of a portable workhorse.

Next-level multiprocess welding performance.
A full-colour 5” screen and intuitive interface allow easy access to all features and parameters, even in bright sunlight. Take performance to the max with a true multiprocess welder with Synergic MIG, Manual MIG, MIG Brazing, Flux-Cored, Lift TIG, Stick/MMA, and 6010 cellulosic capabilities.

Advanced features for total control.
With Arc Dynamics you can fine tune arc characteristics based on the material you are welding. So if you need a stiff arc for carbon steel, or a soft arc for stainless, Rogue will not let you down. Advanced MIG features include adjustable pre- and post-flow, burn back control, wire jog and gas purge. In MMA mode, hot start and arc force control ensure smooth starts and consistent welds.

Additional Information
True multi-process with Synergic MIG, Manual MIG, MIG Brazing, Flux-Cored, Lift TIG, and MMA (including 6010)
Intuitive 5.0 in. TFT screen offers clear views with direct interaction
Synergic Weld Programs –full range of welding parameters, 0.5 –10.0 mm with single knob control
Power Factor Correction (PFC) –ensures a stable arc, resistant to power fluctuations even while working on long extension cables up to 100 m
Unique rugged industrial design –supporting multiple lift points and cable management
Arc Dynamics –fine tune arc characteristics for a crisp/stiff arc for carbon steel or a smooth/soft arc for stainless steel
Jobs –10 memory save/recall function
Spool Gun Ready –Rogue automatically configures set up when spool gun is connected
IP23S rated for indoor/outdoor use

Industries
Agricultural Equipment
Automotive
Automotive Bodies
Civil Construction
Light Fabrication
Repair and Maintenance

Specification
Input Voltage - 230 VAC ±10 %, 1, 50/60 Hz
MIG (GMAW) Welding Output - 210 A24.5 V @ 30 % Duty Cycle136 A20.8 V @ 60 % Duty Cycle105 A19.2 V @ 100 % Duty Cycle
MMA (SMAW) Welding Output - 180 A27.2 V @ 30 % Duty Cycle116 A24.7 V @ 60 % Duty Cycle90 A23.6 V @ 100 % Duty Cycle
TIG (GTAW) Welding Output - 210 A18.0 V @ 30 % Duty Cycle136 A15.4 V @ 60 % Duty Cycle105 A14.2 V @ 100 % Duty Cycle
Current Range - 30-210 A
Wire Feeder Specifications - 2.0-16.5 m/min
Open Circuit Voltage - 78 VDC
Wire Diameter - 0.6-1.0 mm (For all wire)
Max Spool Diameter - 100 & 200 mm
Power Factor at Maximum Current - 0.99
Efficiency at Maximum Current - >82 %
Energy Save Mode - 50 W
Operating Temp - -10 - +40 °C
Enclosure Class - IP23S
Certification - CE
Dimensions, L x W x H - 590 x 220 x 385 mm
Weight - 16.7 kg
